TR7 Series

VFC/CDC Compliant

Temperature

Channels	Temperature 2ch
Range	-40 to 110°C
Comm Interfaces	Wireless LAN, USB, Bluetooth 4.2 (Bluetooth Low Energy)

TR7 Series

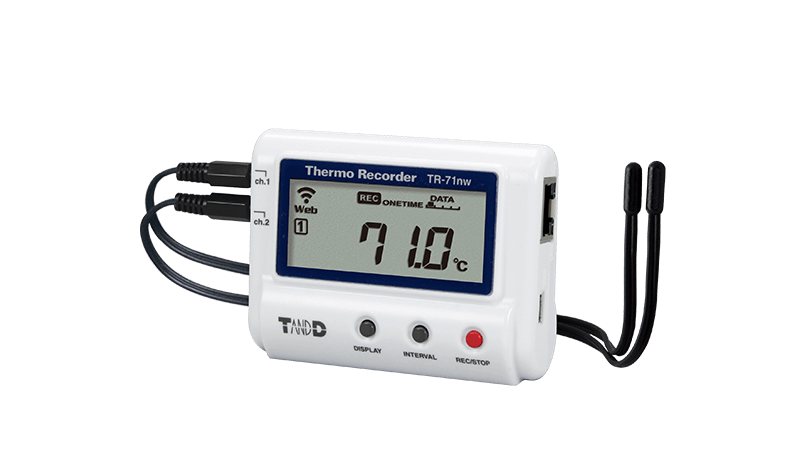

TR-71nw

Temperature

Channels	Temperature 2ch
Range	-40 to 110°C
Comm Interfaces	Wired LAN, USB

TR7 Series

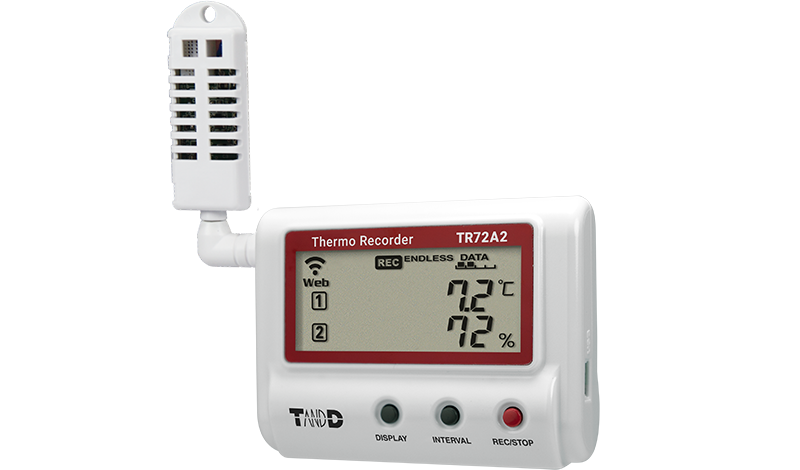

TR72A2

Temperature, Humidity

Channels	Temperature 1ch, Humidity 1ch (External)
Range	Temperature: 0 to 55°C Humidity: 10 to 95%RH
Comm Interfaces	Wireless LAN, USB, Bluetooth 4.2 (Bluetooth Low Energy)

TR7 Series

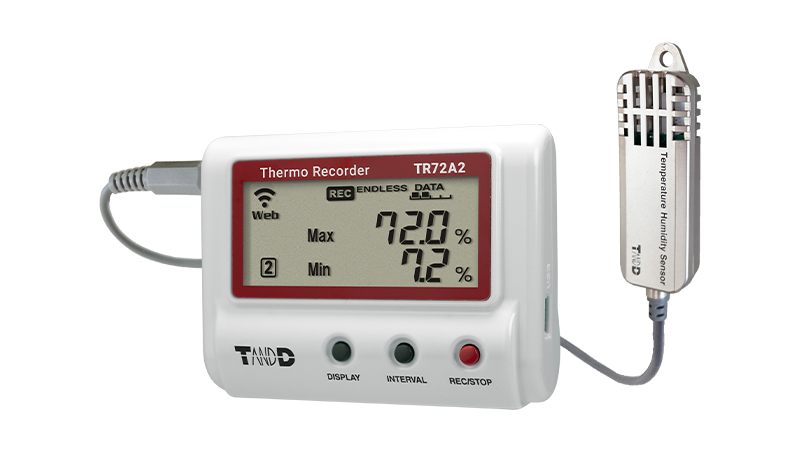

TR72A2-S

High-Precision type

Temperature, Humidity

Channels	Temperature 1ch, Humidity 1ch (External)
Range	Temperature: -25 to 70°C Humidity: 0 to 99%RH
Comm Interfaces	Wireless LAN, USB, Bluetooth 4.2 (Bluetooth Low Energy)

TR7 Series

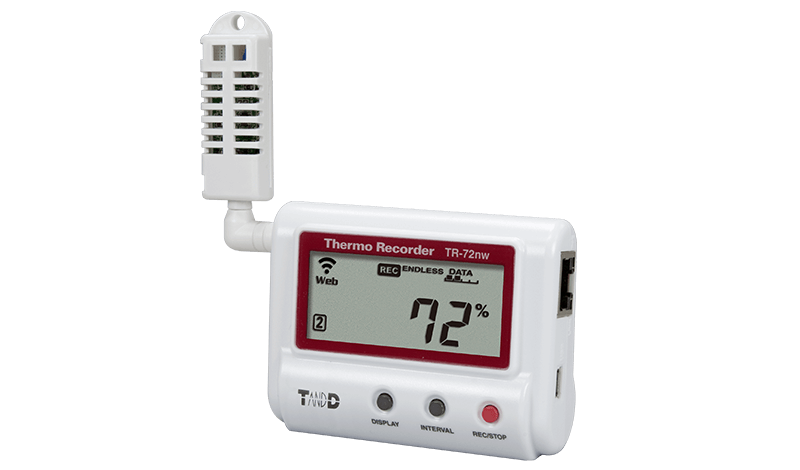

TR-72nw

Temperature, Humidity

Channels	Temperature 1ch, Humidity 1ch (External)
Range	Temperature: 0 to 55°C Humidity: 10 to 95%RH
Comm Interfaces	Wired LAN, USB

TR7 Series

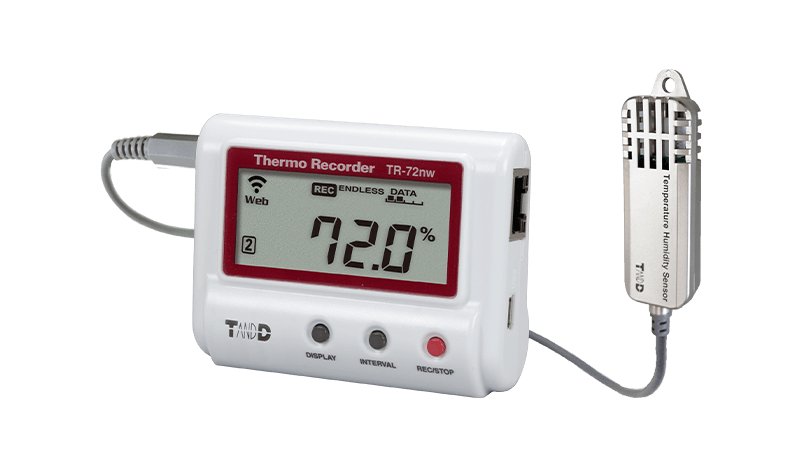

TR-72nw-S

High-Precision type

Temperature, Humidity

Channels	Temperature 1ch, Humidity 1ch (External)
Range	Temperature: -25 to 70°C Humidity: 0 to 99%RH
Comm Interfaces	Wired LAN, USB

TR7 Series

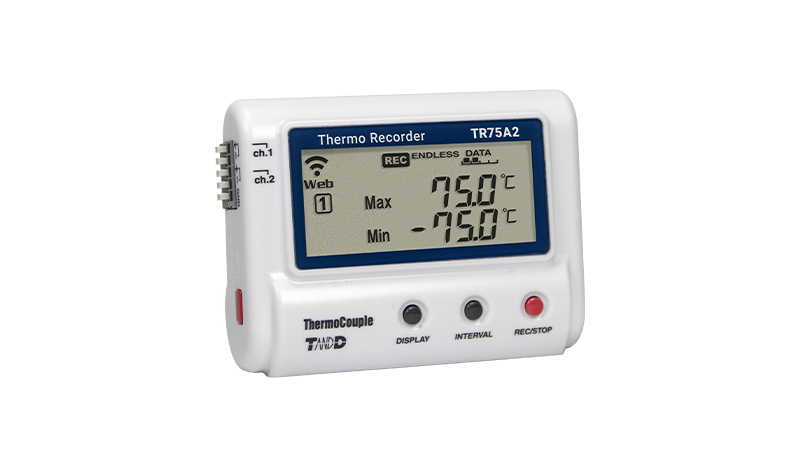

TR75A2

VFC/CDC Compliant

Temperature

Channels	Temperature 2ch Thermocouple: Type K, J, T, E, S, R (sensor not provided)
Range	-199 to 1760°C
Comm Interfaces	Wireless LAN, USB, Bluetooth 4.2 (Bluetooth Low Energy)

TR7 Series

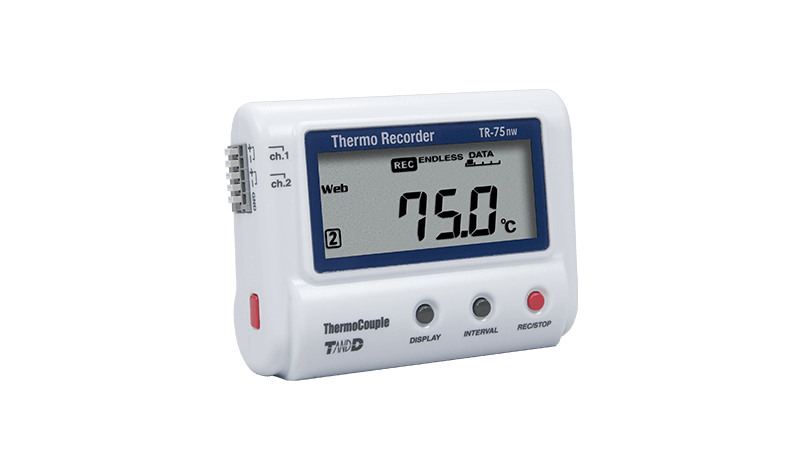

TR-75nw

Temperature

Channels	Temperature 2ch Thermocouple: Type K, J, T, E, S, R (sensor not provided)
Range	-199 to 1760°C
Comm Interfaces	Wired LAN, USB

RTR500B Series

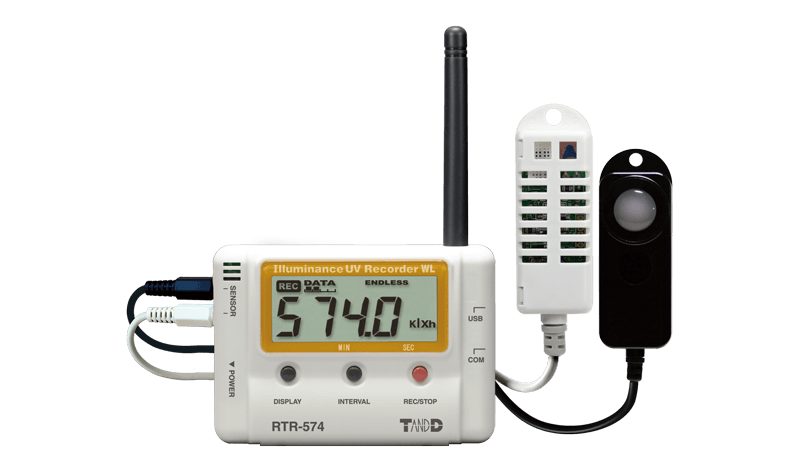

RTR-574

Illuminance, UV Intensity, Temperature, Humidity

Channels	Illuminance, UV Intensity, Temperature, Humidity
Range	Illuminance: 0 to 130klx UV Intensity: 0 to 30mW/cm2 Temperature: 0 to 55°C Humidity: 10 to 95%RH
Comm Interfaces	USB, Short Range Wireless

RTR500B Series

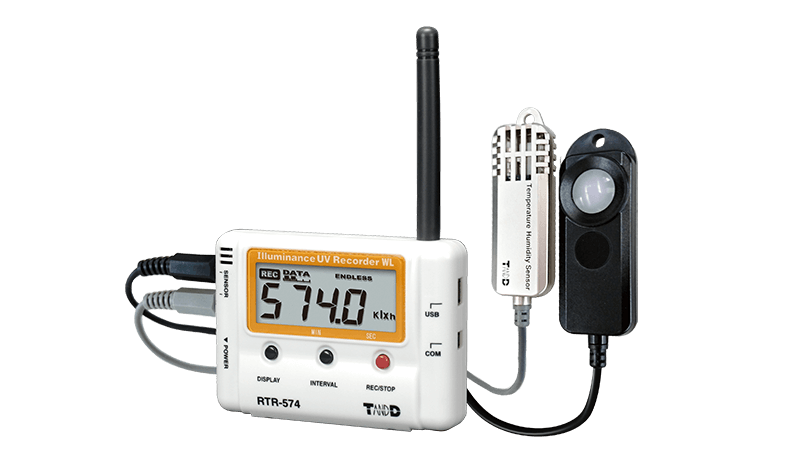

RTR-574-S

High-Precision type

Illuminance, UV Intensity, Temperature, Humidity

Channels	Illuminance, UV Intensity, Temperature, Humidity
Range	Illuminance: 0 to 130klx UV Intensity: 0 to 30mW/cm2 Temperature: -25 to 70°C Humidity: 0 to 99%RH(-20°C~)
Comm Interfaces	USB, Short Range Wireless

RTR500B Series

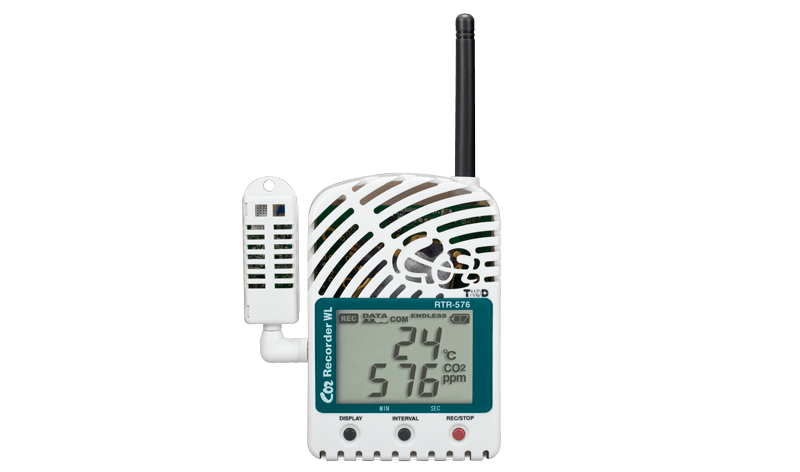

RTR-576

CO2 Concentration, Temperature, Humidity

Channels	CO2 Concentration, Temperature, Humidity
Range	CO2: 0 to 9999ppm Temperature: 0 to 55°C Humidity: 10 to 95%RH
Comm Interfaces	USB, Short Range Wireless

RTR500B Series

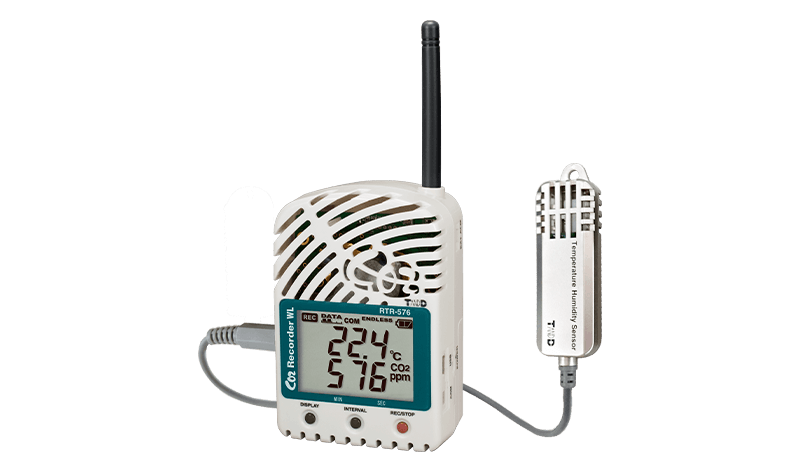

RTR-576-S

High-Precision type

CO2 Concentration, Temperature, Humidity

Channels	CO2 Concentration, Temperature, Humidity
Range	CO2: 0 to 9999ppm Temperature: -25 to 70°C Humidity: 0 to 99%RH(-20°C~)
Comm Interfaces	USB, Short Range Wireless

RTR500B Series

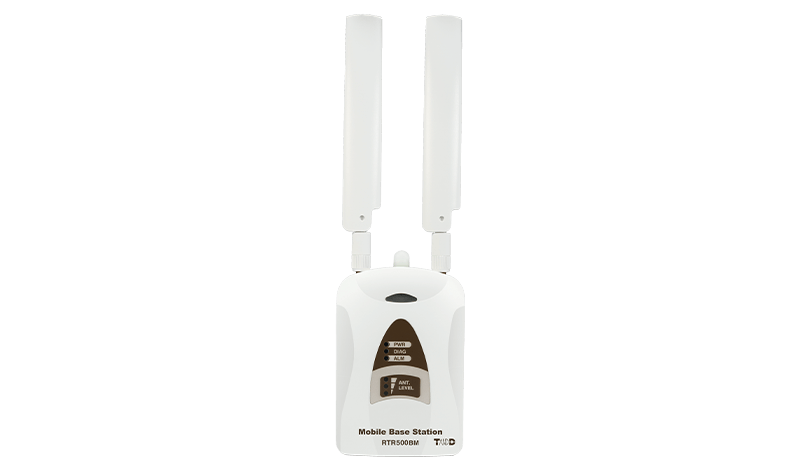

RTR500BM

Mobile Base Station

Inter-unit Communication	Optical, Short Range Wireless
Data Transfer	4G Communication
Unit - PC	USB

RTR500B Series

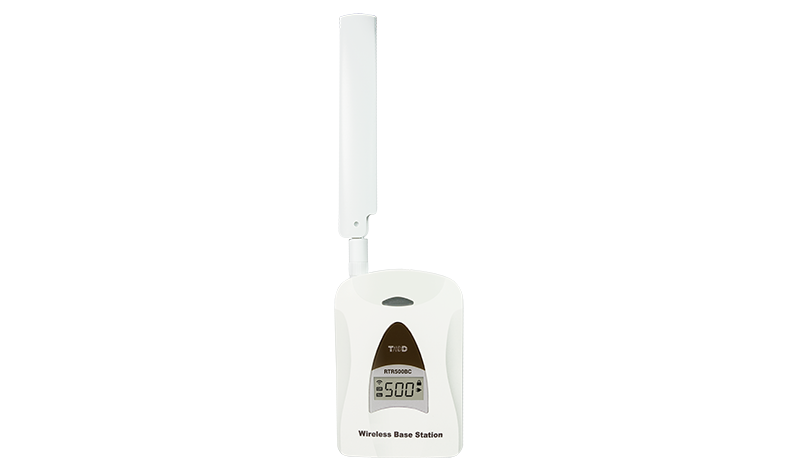

RTR500BC

Wireless Base Station / Repeater

Inter-unit Communication	Optical, Short Range Wireless
Data Transfer	USB
Unit - PC	USB, Serial

RTR500B Series

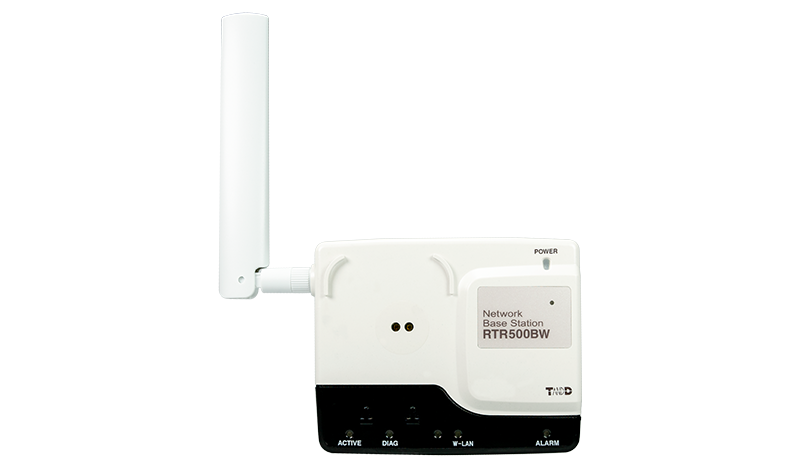

RTR500BW

Network Base Station

Inter-unit Communication	Optical, Short Range Wireless
Data Transfer	Wired LAN / Wireless LAN
Unit - PC	USB

RTR500B Series

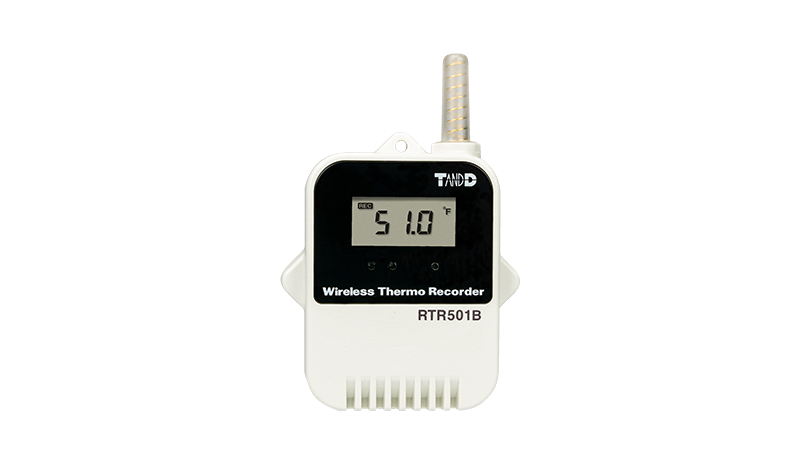

RTR501B

Temperature

Channels	Temperature 1ch (Internal)
Range	-40 to 80°C
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

RTR500B Series

RTR501BL

Long Battery Life type

Temperature

Channels	Temperature 1ch (Internal)
Range	-40 to 80°C
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

RTR500B Series

RTR502B

Temperature

Channels	Temperature 1ch (External)
Range	-60 to 155°C
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

RTR500B Series

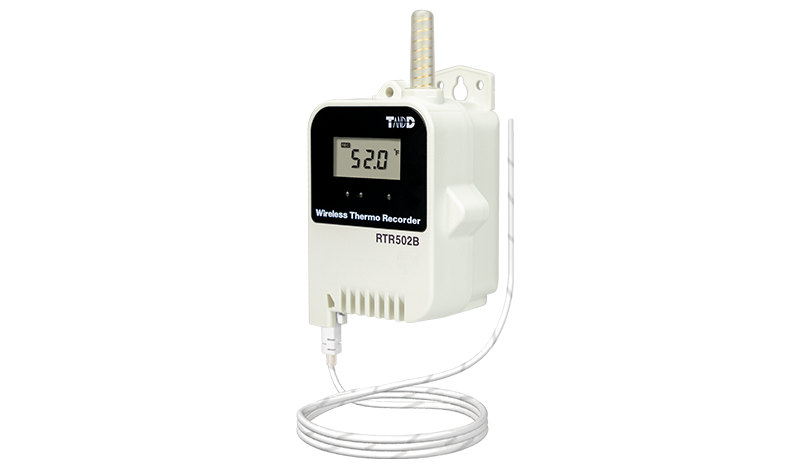

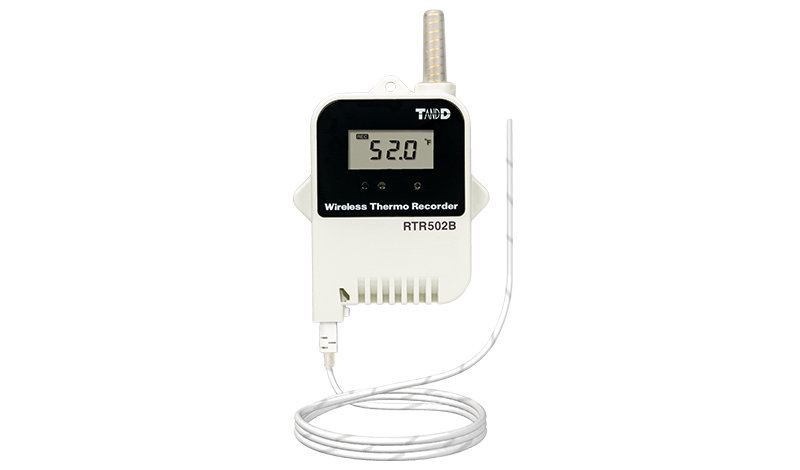

RTR502BL

Long Battery Life type

Temperature

Channels	Temperature 1ch (External)
Range	-60 to 155°C
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

RTR500B Series

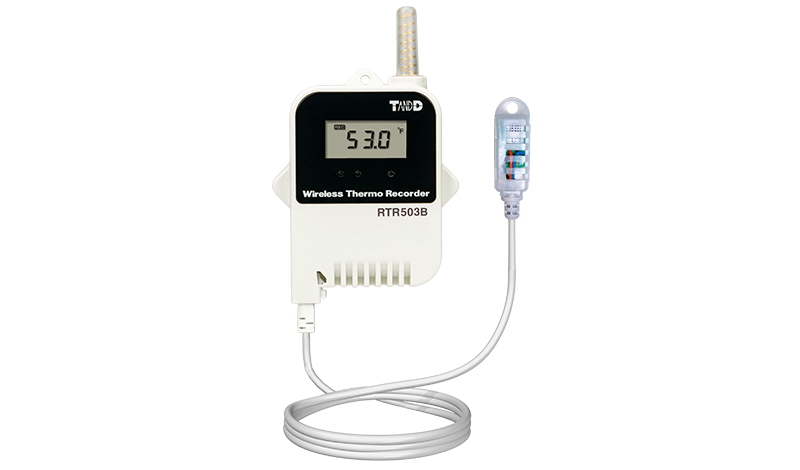

RTR503B

Temperature, Humidity

Channels	Temperature 1ch Humidity 1ch
Range	Temperature: 0 to 55°C Humidity: 10 to 95%RH
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

RTR500B Series

RTR503BL

Long Battery Life type

Temperature, Humidity

Channels	Temperature 1ch Humidity 1ch
Range	Temperature: 0 to 55°C Humidity: 10 to 95%RH
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

RTR500B Series

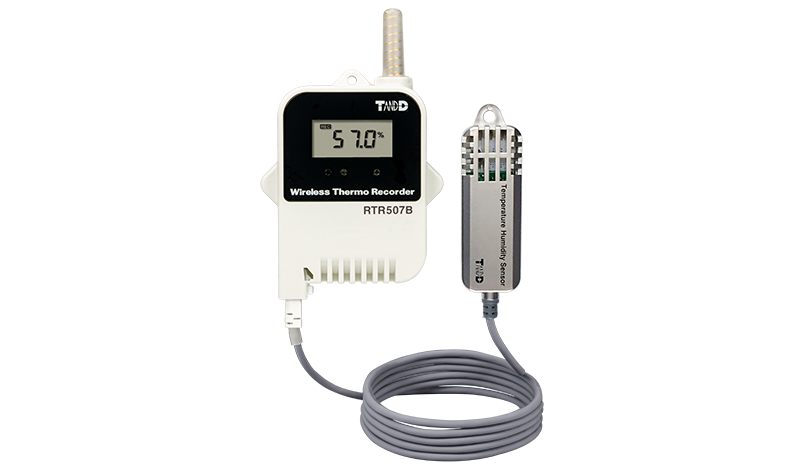

RTR507B

High-Precision type

Temperature, Humidity

Channels	Temperature 1ch Humidity 1ch
Range	Temperature: -25 to 70°C Humidity: 0 to 99%RH (-20°C~)
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

RTR500B Series

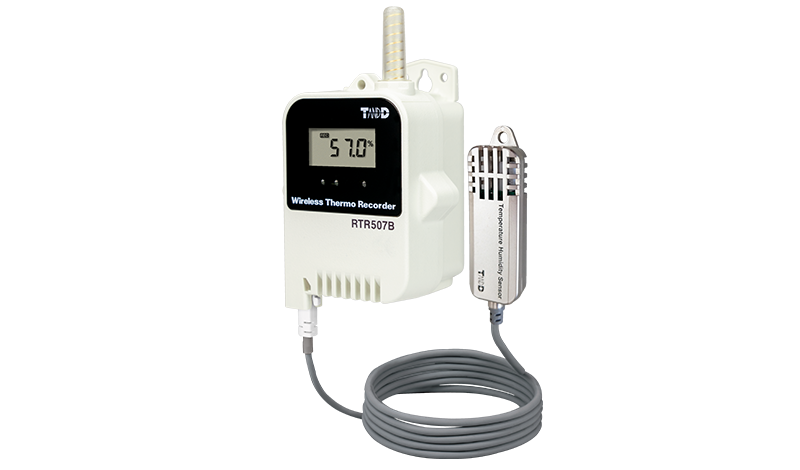

RTR507BL

High-Precision type Long Battery Life type

Temperature, Humidity

Channels	Temperature 1ch Humidity 1ch
Range	Temperature: -25 to 70°C Humidity: 0 to 99%RH (-20°C~)
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

RTR500B Series

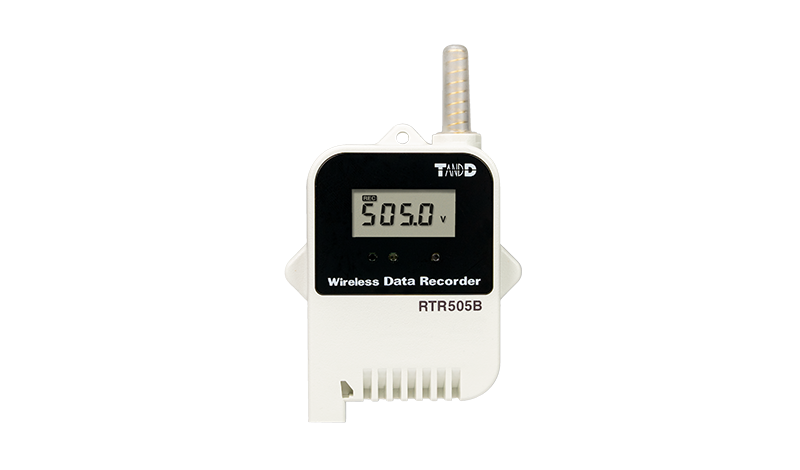

RTR505B

Temperature,Voltage,4-20mA,Pulse

Channels	Temperature,Voltage,4-20mA,Pulse (Sensor not provided / Pt sensor available as option)
Range	Measurement item depends on the input module (sold separately).
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

RTR500B Series

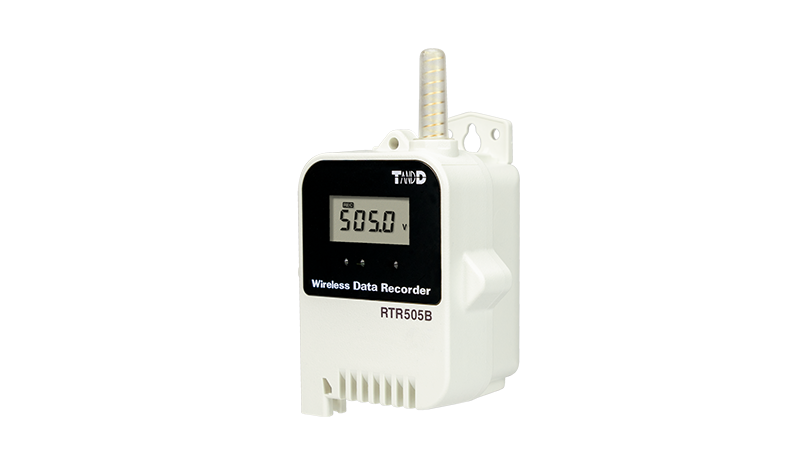

RTR505BL

Long Battery Life type

Temperature,Voltage,4-20mA,Pulse

Channels	Temperature,Voltage,4-20mA,Pulse (Sensor not provided / Pt sensor available as option)
Range	Measurement item depends on the input module (sold separately).
Comm Interfaces	Optical, Short Range Wireless Bluetooth 4.2 (Bluetooth Low Energy)

TR4A Series

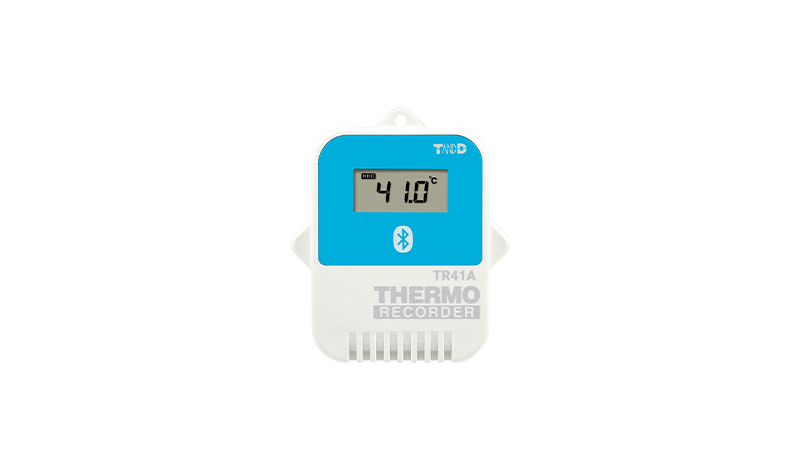

TR41A

Temperature

Channels	Temperature 1ch (Internal)
Range	-40 to 80°C
Comm Interfaces	Bluetooth 4.2 (Bluetooth Low Energy)

TR4A Series

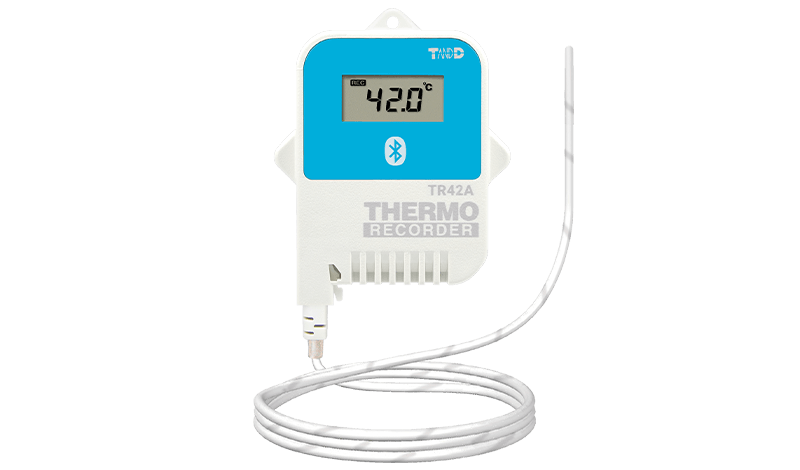

TR42A

Temperature

Channels	Temperature 1ch (External)
Range	-60 to 155 °C
Comm Interfaces	Bluetooth 4.2 (Bluetooth Low Energy)

TR4A Series

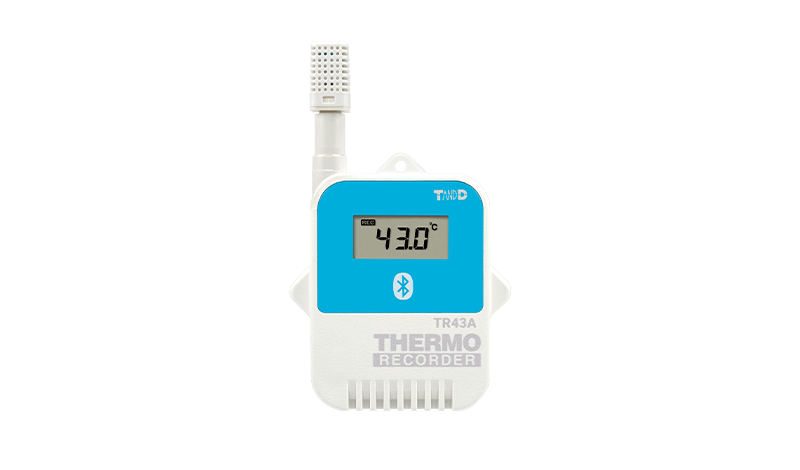

TR43A

Temperature, Humidity

Channels	Temperature 1ch, Humidity 1ch
Range	Temperature: 0 to 55°C Humidity: 10 to 95%RH
Comm Interfaces	Bluetooth 4.2 (Bluetooth Low Energy)

TR4A Series

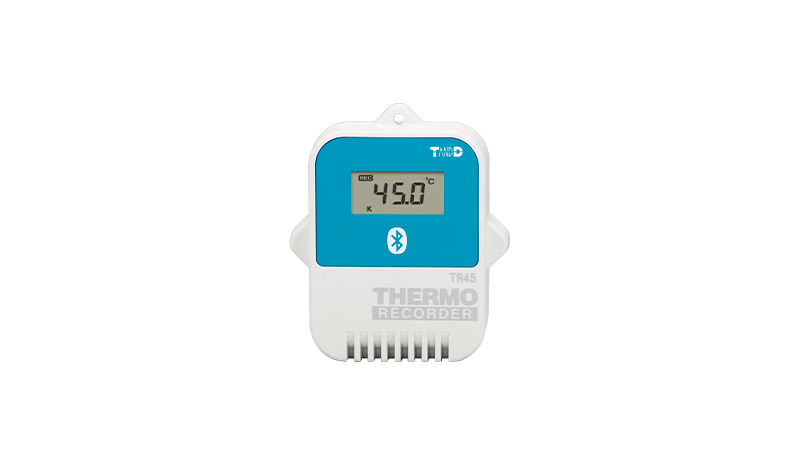

TR45

Temperature

Channels	Temperature 1ch Thermocouple: Type K, J, T, S, R or Pt100 / Pt1000 (sensor not provided / Pt sensor available as option)
Range	TC: -199 to 1760 °C Pt: -199 to 600 °C
Comm Interfaces	Bluetooth 4.1 (Bluetooth Low Energy)

TR-5i Series

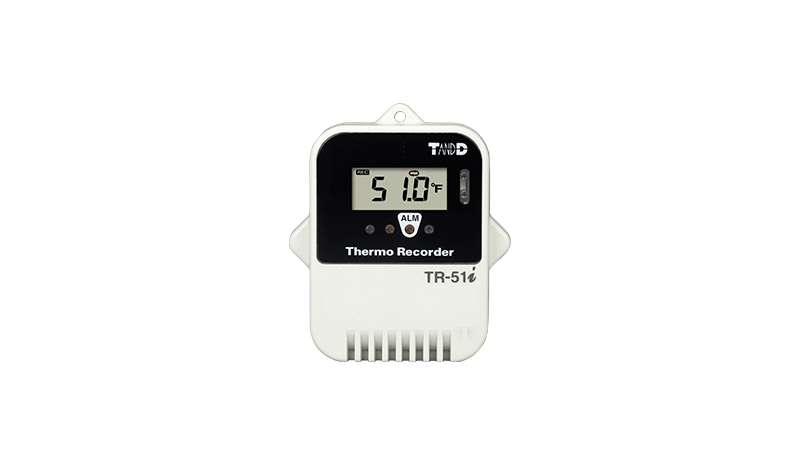

TR-51i

Temperature

Channels	Temperature 1ch (Internal)
Range	-40 to 80°C
Comm Interfaces	Optical

TR-5i Series

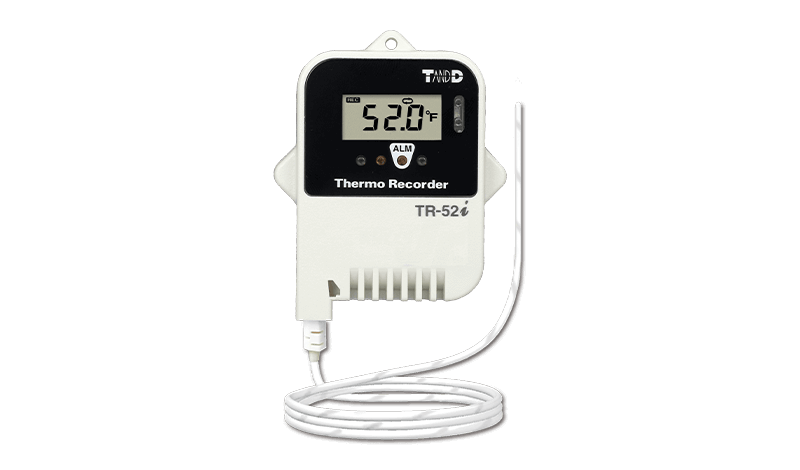

TR-52i

Temperature

Channels	Temperature 1ch (External)
Range	-60 to 155°C
Comm Interfaces	Optical

TR-5i Series

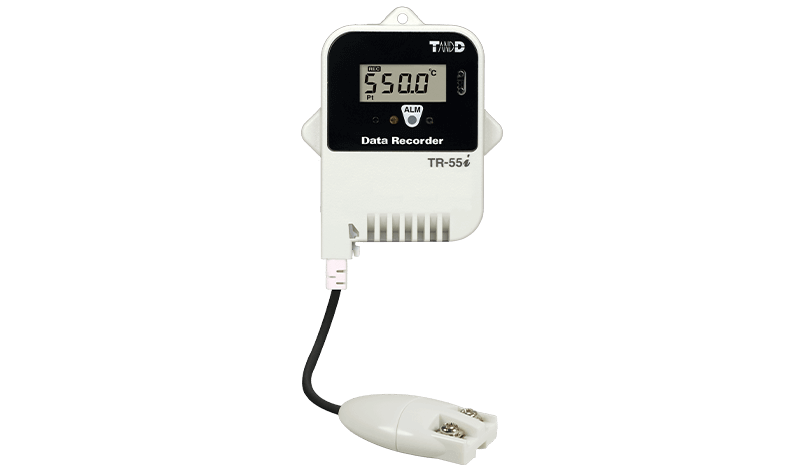

TR-55i-Pt

Temperature

Channels	Temperature 1ch Pt100 / Pt1000 (sensor available as option)
Range	-199 to 600°C
Comm Interfaces	Optical

TR-5i Series

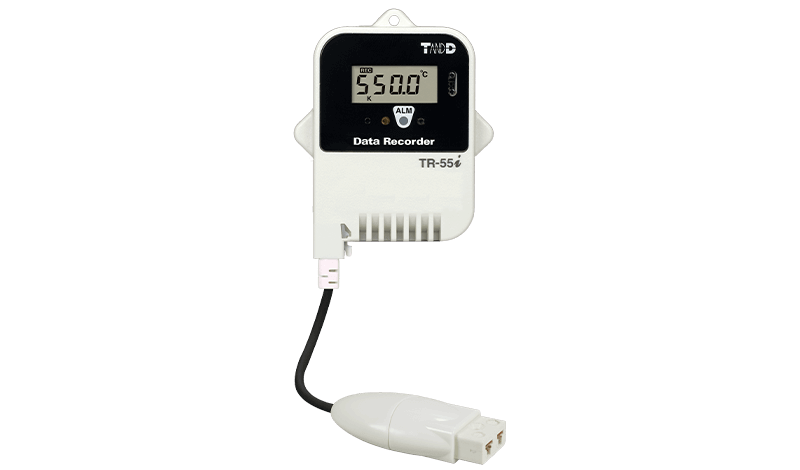

TR-55i-TC

Temperature

Channels	Temperature 1ch Thermocouple: Type K, J, T, S (sensor not provided)
Range	-199 to 1760 °C
Comm Interfaces	Optical

TR-5i Series

TR-55i-V

Voltage

Channels	Voltage 1ch (Sensor not provided)
Range	0 to 22V
Comm Interfaces	Optical

TR-5i Series

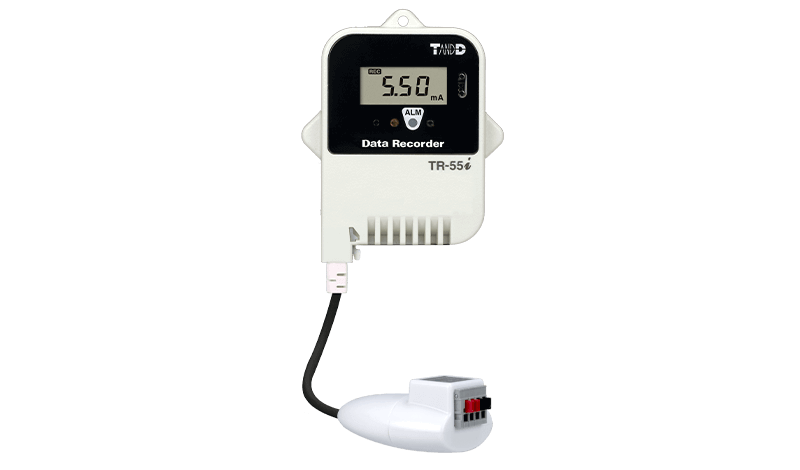

TR-55i-mA

4-20mA

Channels	4-20mA 1ch (Sensor not provided)
Range	0 to 20 mA
Comm Interfaces	Optical

TR-5i Series

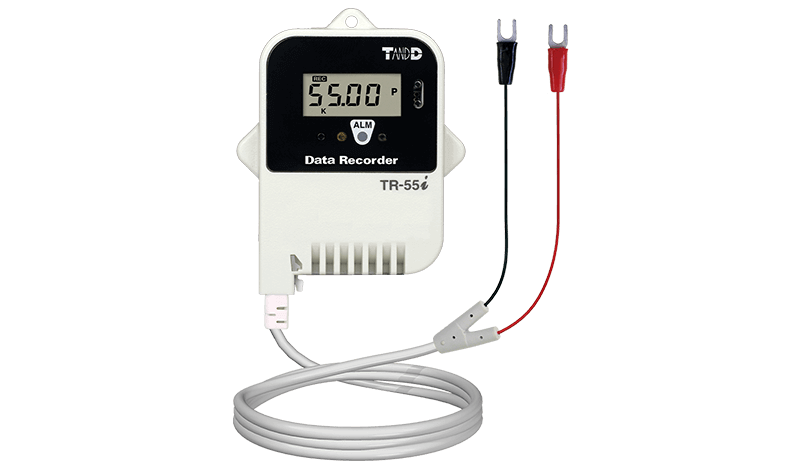

TR-55i-P

Pulse Count

Channels	Pulse Count 1ch (Sensor not provided)
Range	Input Signal, Detection Voltage
Comm Interfaces	Optical

TR-5i Series

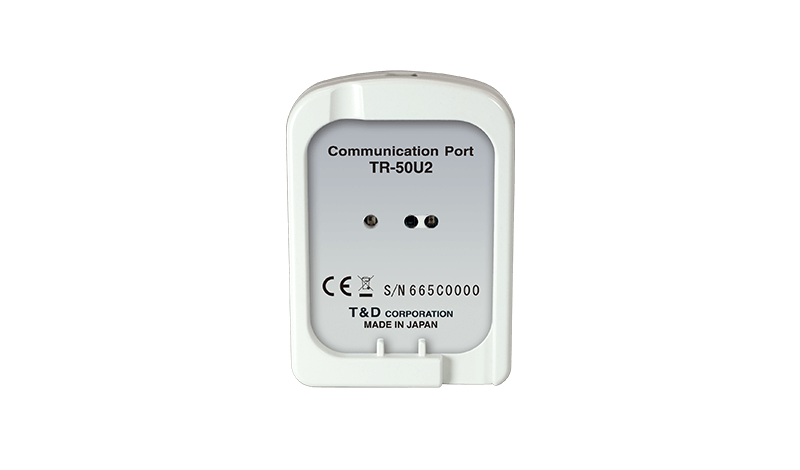

TR-50U2

Communication Port

Inter-unit Communication	Optical
Unit - PC	USB

TR-7Ui Series

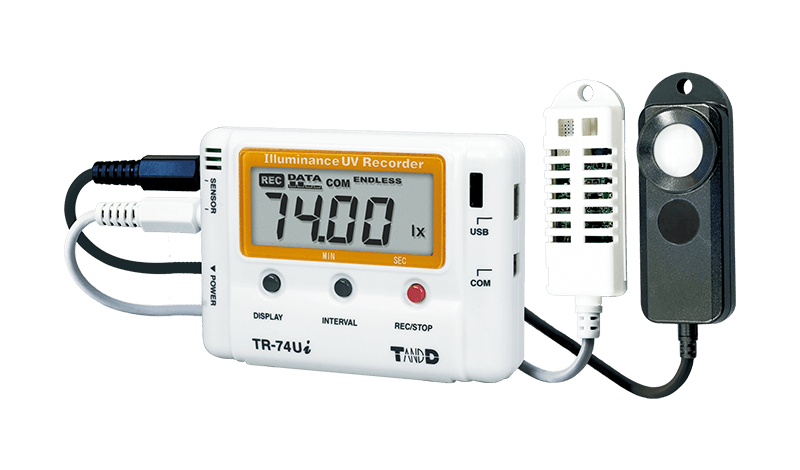

TR-74Ui

Illuminance, UV Intensity, Temperature, Humidity

Channels	Illuminance, UV Intensity, Temperature, Humidity
Range	Illuminance: 0 to 130klx UV Intensity: 0 to 30mW/cm2 Temperature: 0 to 55°C Humidity: 10 to 95%RH
Comm Interfaces	USB, Serial

TR-7Ui Series

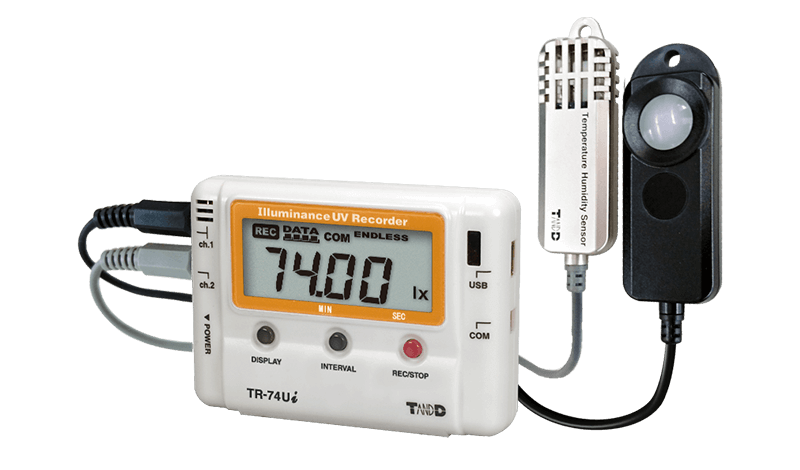

TR-74Ui-S

High-Precision type

Illuminance, UV Intensity, Temperature, Humidity

Channels	Illuminance, UV Intensity, Temperature, Humidity
Range	Illuminance: 0 to 130klx UV Intensity: 0 to 30mW/cm2 Temperature: -25 to 70°C Humidity: 0 to 99%RH (-20°C~)
Comm Interfaces	USB, Serial

TR-7Ui Series

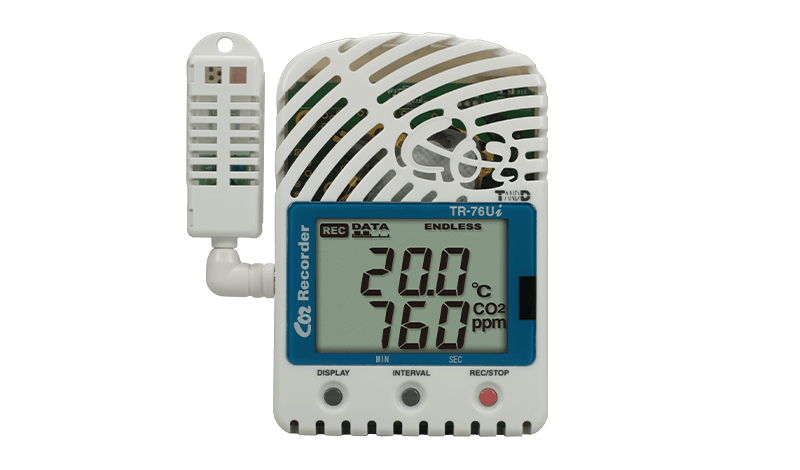

TR-76Ui

CO2 Concentration, Temperature, Humidity

Channels	CO2 Concentration, Temperature, Humidity
Range	CO2: 0 to 9999ppm Temperature: 0 to 55°C Humidity: 10 to 95%RH
Comm Interfaces	USB, Serial

TR-7Ui Series

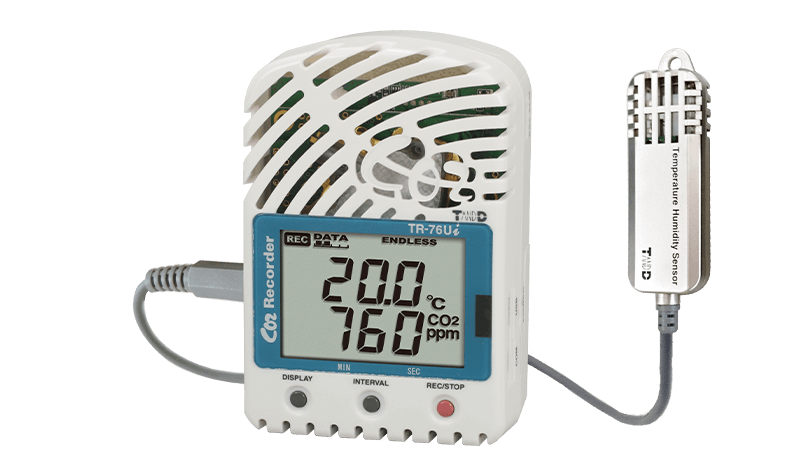

TR-76Ui-S

High-Precision type

CO2 Concentration, Temperature, Humidity

Channels	CO2 Concentration, Temperature, Humidity
Range	CO2: 0 to 9999ppm Temperature: -25 to 70°C Humidity: 0 to 99%RH (-20°C~)
Comm Interfaces	USB, Serial

TR-7Ui Series

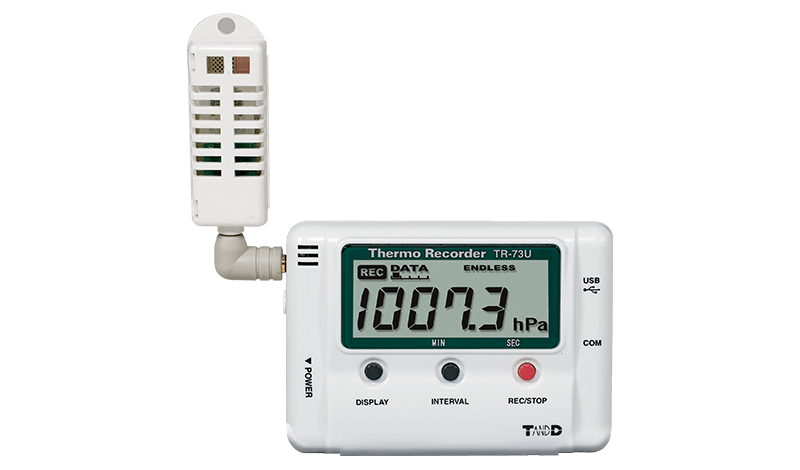

TR-73U

Barometric Pressure, Temperature, Humidity

Channels	Barometric-Pressure, Temperature, Humidity
Range	Barometric-Pressure: 750 to 1100 hPa Temperature: 0 to 50°C Humidity: 10 to 95%RH
Comm Interfaces	USB, Serial

MCR Series

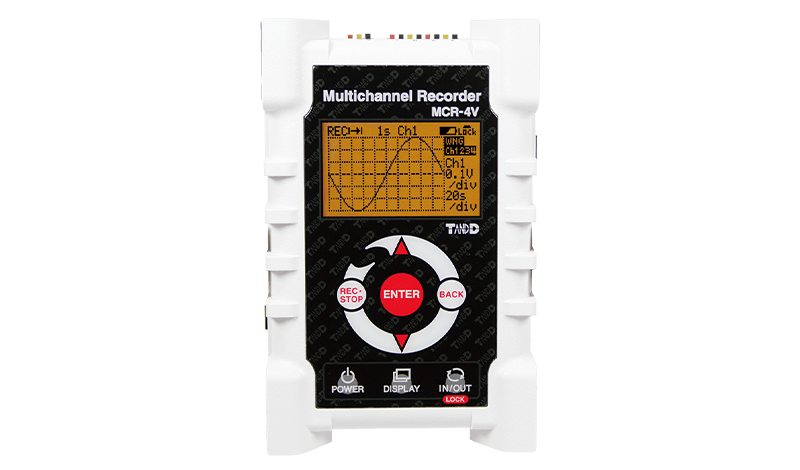

MCR-4V

Voltage

Channels	Voltage 4ch (Sensor not provided)
Range	±300mV to ±24V, AUTO
Comm Interfaces	USB

MCR Series

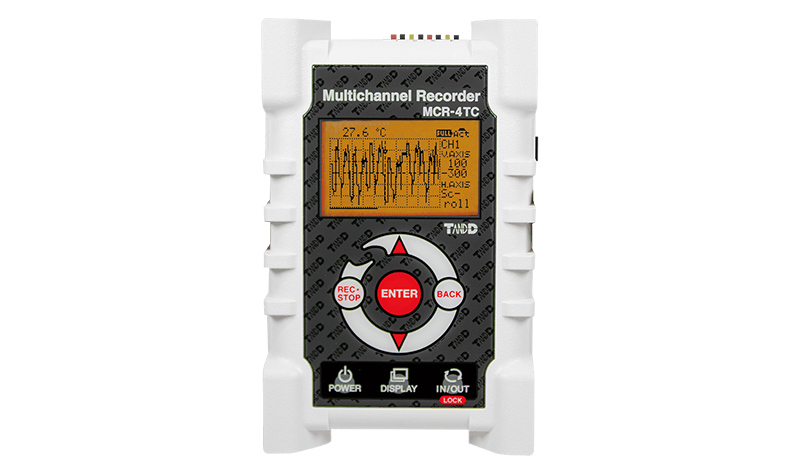

MCR-4TC

Temperature

Channels	Temperature 4ch Thermocouple: Type K, J, T, S, R (sensor not provided)
Range	-270 to 1760°C
Comm Interfaces	USB

RTR-600 Series

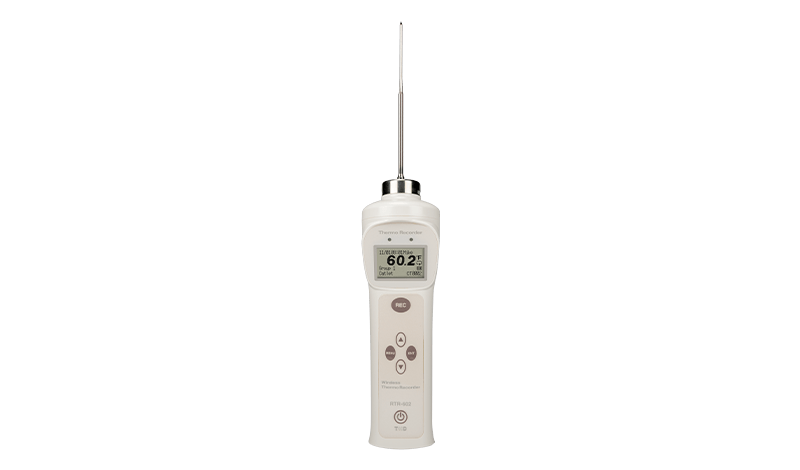

RTR-602S

Temperature

Channels	Temperature 1ch, Pt1000
Range	-60 to 250°C
Comm Interfaces	Short Range Wireless
Sensor Type	Short Sharp Tip Sensor Type

RTR-600 Series

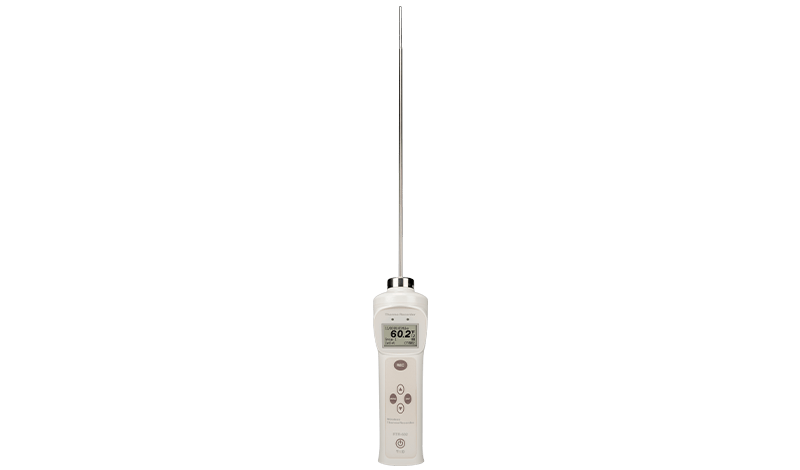

RTR-602L

Temperature

Channels	Temperature 1ch, Pt1000
Range	-60 to 250°C
Comm Interfaces	Short Range Wireless
Sensor Type	Long Round Tip Sensor Type

RTR-600 Series

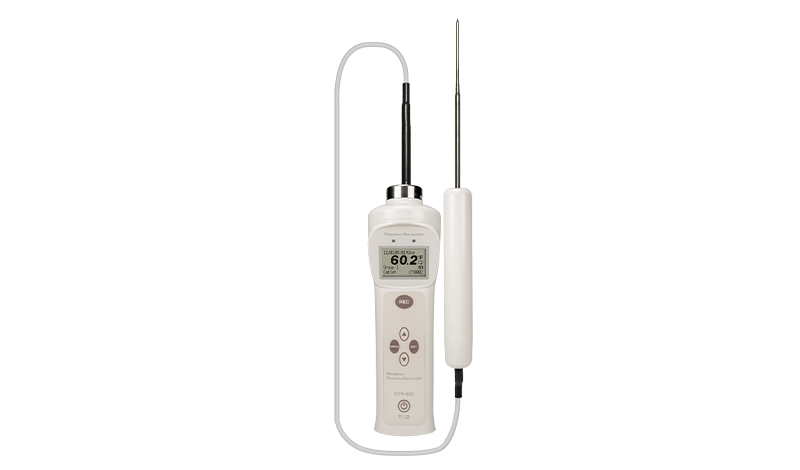

RTR-602ES

Temperature

Channels	Temperature 1ch, Pt1000
Range	-60 to 250°C
Comm Interfaces	Short Range Wireless
Sensor Type	Short Sharp Tip Sensor Type with Cable

RTR-600 Series

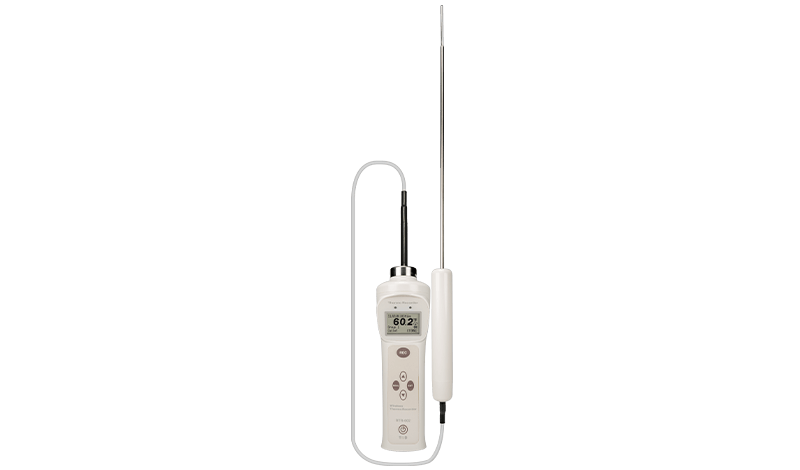

RTR-602EL

Temperature

Channels	Temperature 1ch, Pt1000
Range	-60 to 250°C
Comm Interfaces	Short Range Wireless
Sensor Type	Long Round Tip Sensor Type with Cable

RTR-600 Series

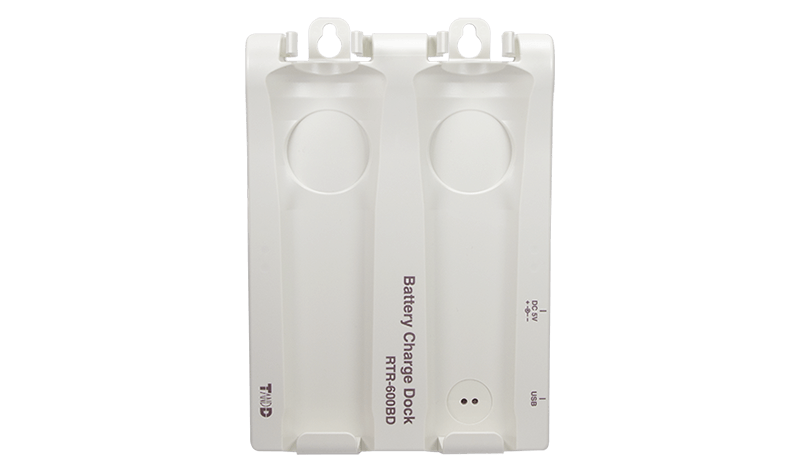

RTR-600BD

Comm Interfaces	USB, Battery Charge Dock

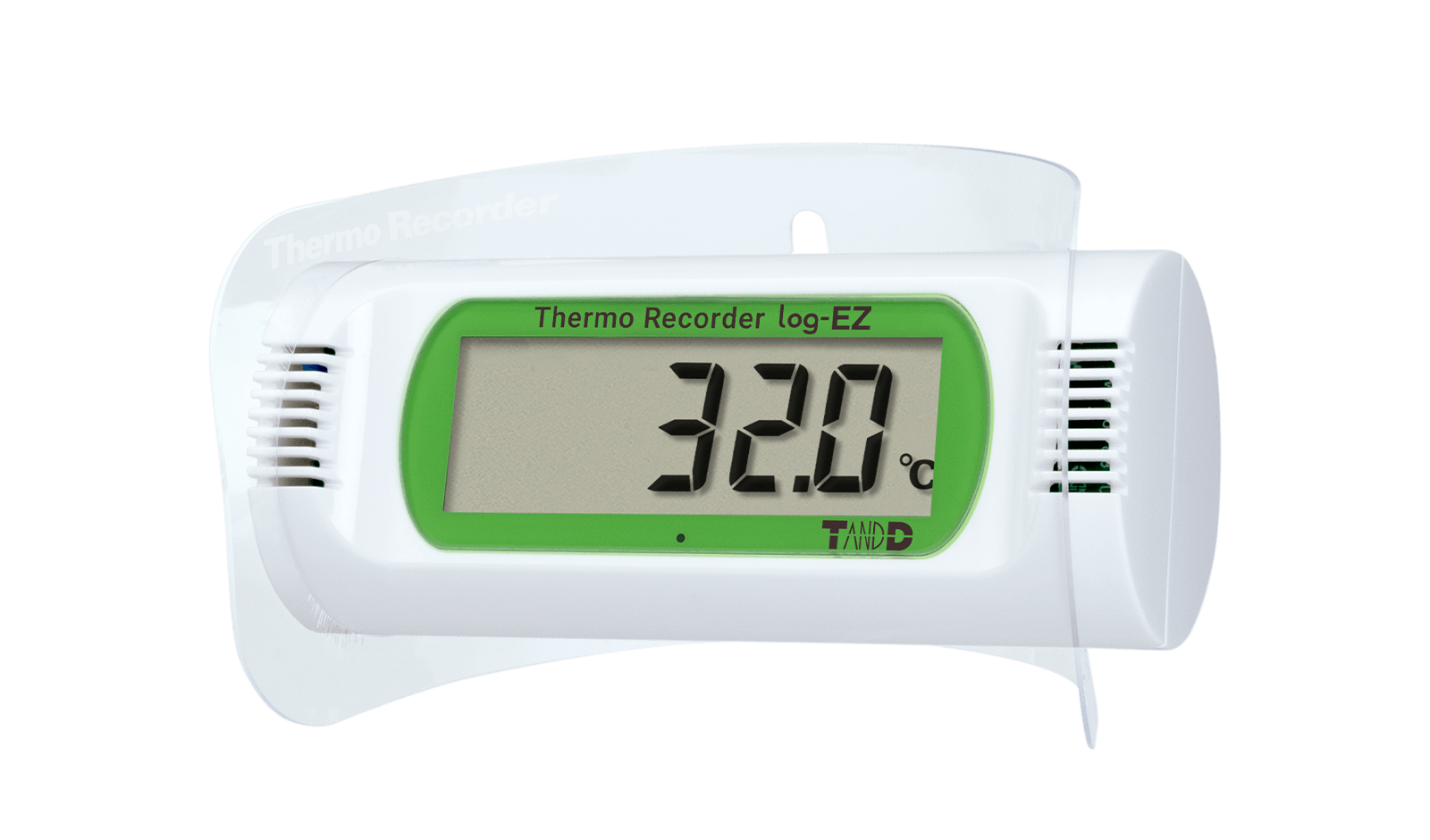

TR32B

Temperature, Humidity

Channels	Temperature 1ch, Humidity 1ch
Range	0 to 50°C, 10 to 90%RH
Comm Interfaces	Bluetooth 4.2 (Bluetooth Low Energy)
